CADDY® CAT CM Cable Support System

CADDY® CAT CM is an alternative to cable tray in low-voltage and power cable applications. This cable-support system has cULus®-Listed components and allows for customized support spacing and simple horizontal and vertical change of direction.

Beginning with the J-Hook, ERICO® continues to innovate and develop the complete line of CADDY® CABLECAT products to support today's high-performance cable. The CADDY CAT CM provides a cable tray alternative utilizing rod and strut components together with specifically developed steel brackets.

Features

  • Includes specially designed U-Hooks and double J-Hooks with large-diameter, rounded support surfaces/edges to avoid overbending and kinking of cables
  • Accommodates U-Hooks in a range of sizes for different cable capacity needs
  • Offers two installation options that can easily be combined resulting in installation flexibility to meet a variety of needs
    • Rod-mounted option
    • Cantilever-mounted option

The Rod-Mounted option allows for field assembly of the hooks onto All-Thread Rod. Benefits include:

  • Customized intervals between hooks to comply with ISO/IEC 18010
  • Easy level changes - under or over ductwork, piping, etc. - no level change fittings necessary
  • Direct attachment to the ceiling or building structure with threaded rod and CADDY® Fasteners

The Cantilever-Mounted option consists of U-Hooks mounted with brackets to walls and columns. This option allows for:

  • Cable runs along walls
  • Specification of individual hook spacing as needed
  • Mounting of cable within existing column grid

Applications

  • Horizontal and vertical runs
  • Variable cable support spacing
  • Support from the ceiling, beam or strut and mounting on the floor

More Information

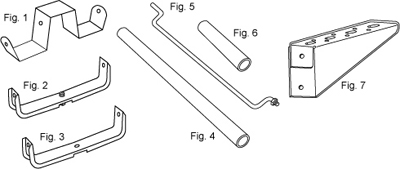

UPC No.782856 European Part No. Part Number Description Std Box/Case Qty Weight per Box Kg.(Lb.) Fig No.
46498 181976 CAT100CM Double J-Hook 20/120 3.4 (7.5)

1

46486 181981 CAT200CM U-Hook 200 mm/8" with T-nut* 10/50 2.7 (6)

2

46489 181982 CAT200CMLN U-Hook 200 mm/8" less nut 10/50 2.3 (5)

3

46485 181983 CAT300CM U-Hook 300 mm/12" with T-nut* 10/50 3.2 (7)

2

46490 181984 CAT300CMLN U-Hook 300 mm/12" less nut 10/50 2.7 (6) 3
46493 181988 CATRL200CM Roller 200 mm/8" (incl. rod & nuts) 10/no case 2.3 (5) 4
46494 181989 CATRL300CM Roller 300 mm/12" (incl. rod & nuts) 10/no case 3.2 (7) 4
46496 181991 CATRT200CM Wire Retainer 200 mm/8" 50/no case 3.4 (7.5) 5
46495 181992 CATRT300CM Wire Retainer 300 mm/12" 50/no case 4.5 (10) 5
46497 181987 CATTBCM Protection tube 30/no case 1.6 (3.5)

6

47336

   CATWMCM Wall Bracket  10  3.86 (8.5)

7

*Quick-Attach T-nut for HALF SLOT Strut

Rod-Mount Installation Instructions
1. Mount U-Hook or Double J-Hook to All-Thread Rod 2. Connect the U-Hook or Double J-Hook with All-Thread Rod to beam with a beam clamp

Cantilever-Mount Installation

Attach U-Hook onto wall bracket already mounted on wall
