CADDY® Rod and Wire Hangers

CADDY® Rod and Wire HangersPrint this page

ERICO offers CADDY Rod and Wire Hangers.

Features

  • Angle bracket suspends plain rod, threaded rod or wire drops from laminated wood or concrete beams, joists, ceilings and walls.
  • Offset bracket suspends plain rod, threaded rod or wire drops from laminated wood or concrete beams, joists, ceilings and walls.

Applications

Angle brackets and offset brackets available for plain and threaded rod.

More Information

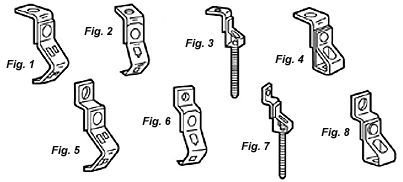

Catalog No.
Angle Bracket
Fig
No.
Std Box Qty Description Catalog No.
Offset Bracket
Fig
No.
Std Box Qty
708AB 1 100 For #8 wire or 1/4" plain rod 708AO 5 100
6AB 2 100 For 3/8" plain rod 6AO 6 100
4TIB 3 100 For 1/4" threaded rod, with thread impression 4TIO 7 100
6TIB 3 100 For 3/8" threaded rod, with thread impression 6TIO 7 100
6TB 4 100 For 1/4" or 3/8" threaded rod, nuts required 6TO 8 100
NOTE: Loads indicated are for CADDY Fasteners only. Method of attachment to structure must be evaluated separately.

Downloads

Availability

North America
Latin America

Due to a policy of continued product development, specifications are subject to change without notice.
