IDS

IDSPrint this page

The IDS series of Independent Support Clips from ERICO® has been expanded to accommodate up to 1½” and 1¾” tall ceiling substructures (T-grids). Independent Support Clips are required by NEC® Article 410.16-C as a way to provide a separate means of support for fixtures. IDS clips, with a static load limit of 65 lbs, are an ideal way to comply with this standard.

Features

•    Accommodate up to 1½” and 1¾” tall T-grids
•    Requires no installation tools
•    Includes mounting hardware
•    Fits all commercially available T-Grids in a code-compliant manner
•    Optional barrel nuts are available for low-profile track lighting

Applications

•    Low-profile track lighting
•    Surface mounted light fixtures
•    Pendant lights
•    Partition walls
•    Acoustical baffles












More Information


















Part Number

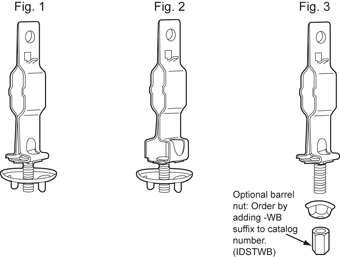

Fig. No.
Grid Size
Stud Length
Static Load Limit
Qty. Per Box



1/4-20 STUD


IDS1
15/16"
5/8"
65 lbs.
100
IDS151
15/16"
1-1/2"
65 ibs.
100
IDS2
1
15/16"
2"
65 lbs.
100
IDS9
1
9/16"
5/8"
65 lbs.
100
IDS95
2
9/16" x 5/16"
5/8"
65 lbs.
100



8-32 STUD
(for track lighting)

IDST*3
15/16"
9/16"
65 lbs.
100
IDS9T*3
9/16"
9/16"
65 lbs.
100
IDS95T*2
9/16" x 5/16"
9/16"
65 lbs.
100
* Uses identical nuts to Figure 3

NEC is a registered trademark of, and the National Electric Code (NEC) standard is a copyright of the National Fire Protection Association.

Availability

North America

Due to a policy of continued product development, specifications are subject to change without notice.
