CADDY® Adjustable Box And Conduit Support (DFN)

CADDY® Adjustable Box And Conduit Support (DFN)Print this page

ERICO offers the CADDY Adjustable Box and Conduit Support (DFN).

Features

  • Supports boxes and conduit above acoustical T-bar with adjustments from 4 1/4" through 7 1/4".
  • Allows attachment of conduit clips with thread impressions at required height
  • Assemblies available for specific conduit locations
  • No tools required to install
NOTE:  Consult local authority for application approval.

Applications

Supports boxes and conduit above acoustical T-bar with adjustments from 4-1/4" through 7-1/4"

More Information

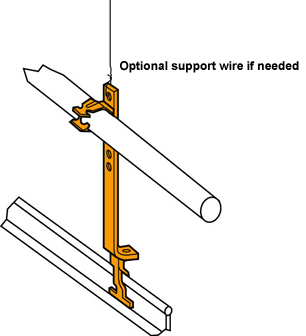

DFN application

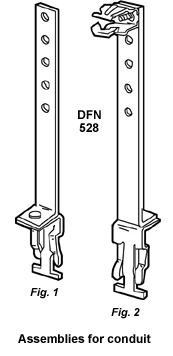

Catalog No. Fig No. Conduit Size Std Box Qty
528 1 — 50
5288P* 2 For 1/2" EMT 25
52812P* 2 For 3/4" EMT 25
52816P* 2 For 1" EMT 25
* Comes with P-series with THD impression screw assembled to top hole location (adjustable). Also available as riveted assembly. Specify hole location.
No Load Rating - Positioning Only

Availability

North America
Latin America

Due to a policy of continued product development, specifications are subject to change without notice.
