CADDY® Beam Clamp with Swivel Option - Model BC10

CADDY® Beam Clamp with Swivel Option - Model BC10Print this page

ERICO offers the CADDY Beam Clamp with Swivel Option - Model BC10.

Features

  • Accommodates rod sizes up to 1/2" Ø
  • For attachment to beams or angles up to 3/4" (20 mm) thick
  • Designed to allow swivel up to 15° from bottom holes or with the use of BC15 swivel (available separately) for attachment to inclined beams without bending the rod
  • Hardened cup point setscrew to provide secure grip on tapered sections
  • Stamped steel with electrogalvanized finish for good corrosion protection
  • Available in hot dipped galvanized finish (special order)
  • J-Bolt assembly available for more secure attachment in industrial or seismic applications

Applications

For attachment to beams or angles up to 3/4" (20 mm) thick.

More Information

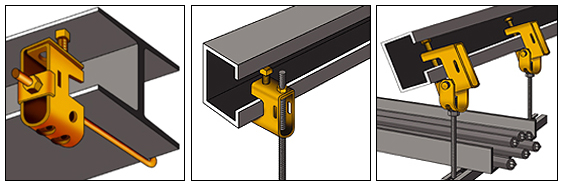

Application Examples

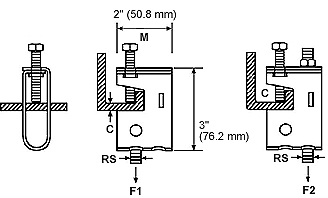

BC10 Clamp

Catalog No. RS M C MAX Coating Std Box Qty F1
(Lbs)
F2
(Lbs)
BC100000EG 1/2" 3/8" - 16 3/4" EG 25 500 300
F1 is load rating from the front hole
F2 is load rating from the back hole

Swivel Assemblies

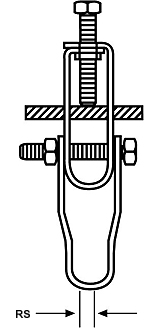

BC10 Swivel Assemblies

Catalog No. RS Description Coating Std Box Qty
BC101500EG 1/2" Beam clamp with swivel assembly EG 25

C = Flange Size
M = Bolt Size
RS = Rod Size
