CADDY® Beam Retainer Accessories

CADDY® Beam Retainer AccessoriesPrint this page

ERICO offers CADDY Beam Retainer Accessories.

Features

For use with CADDY beam clamps

Applications

For use with CADDY beam clamps

More Information

Retainer Straps for use with BC13 and BC14 Beam Clamps

Catalog Number L A MAX Coating Std Box Qty
  in mm in mm
BC090900EG 9" 230 6" 150 PG 50
BC091200EG 12" 300 9" 230 PG 50
BC091500EG 15" 380 12" 300 PG 25

Retainer Straps for use with 200 Beam Clamps
For Use With 2000037EG & 2000050EG

Catalog No. L A MAX Coating Std Box Qty
  in mm in mm
200C3706EG 6" 150 4" 100 PG 50
200C3708EG 8" 200 6" 150 PG 50
200C3710EG 10" 250 8" 200 PG 50
200C3714EG 14" 350 12" 300 PG 50

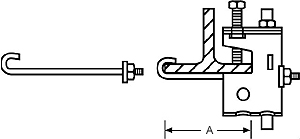

J-Bolt for use with BC10 Beam Clamp

Catalog No. Description A
    in mm
BC110000EG Beam Clamp with 8" J-Bolt 3-1/2 " - 7" 90-180
BC120000EG Beam Clamp with 12" J-Bolt 7-1/2" - 11 90-230
BC11JBLTEG J-Bolt assembly only 3-1/2 " - 7" 90-180
BC12JBLTEG J-Bolt assembly only 7-1/2" - 11 190-230

NOTE: Other sizes, coatings and materials available as a Special Order for all Retainer Straps and J-Bolts.
