CADDY® Bulb Tee Clip

CADDY® Bulb Tee ClipPrint this page

ERICO offers Caddy Bulb Tee Clips.

Features

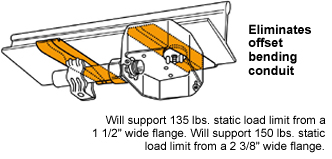

  • Provides means of support from underside of bulb tee 1-1/2" thru 2-3/8" wide
  • Ceiling material not defaced when applied
  • Requires only hammer to install

Applications

CADDY Bulb Tee Clips are available for 1/4" carriage bolts, 1/4"-20 nuts, 3/8"-16 stud or nut.

NOTE: Other stud lengths quoted on request.

More Information

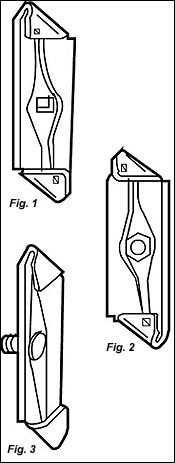

Bulb Tee Clips

Catalog No. Fig No. Conduit Size Std Box Qty
4J2438 1 Jr. Beam Clamp for bulb tees. Use standard 1/4" carriage bolt (not furnished) 100
4NJ2438 2 Jr. Beam Clamp for bulb tees – 1/4"-20 nut included 100
6NJ2438 2 Jr. Beam Clamp for bulb tees – 3/8"-16 nut included 100
4J2438S 3 Jr. Beam Clamp for bulb tee with 3/8" long 1/4"-20 stud 100
