CADDY® CABLECAT - Adjustable Cable Support

CADDY® CABLECAT -  Adjustable Cable SupportPrint this page

ERICO offers the CADDY CABLECAT Adjustable Cable Support - a cost-effective alternative to expensive cable tray.

Features

  • Provides proper support of copper and fiber optic cable, as well as innerduct
  • Underfloor pedestal assemblies available - contact ERICO
  • Attaches to virtually any structure
  • Cost-effective alternative to expensive cable tray
  • Installation of non-continuous supports saves disassembly of suspended ceiling structure

Applications

  • Support for secondary cable runs on ceilings and raised floors

More Information

View regional product information : North & Latin America

North & Latin America

  • Up to 425 cables of 4-pair UTP CAT5e or 2-strand fiber optic or 265 CAT6
  • Can be reduced from a 6" diameter to a 4" diameter loop
  • Complies with UL, cUL, NEC and EIA/TIA requirements for structured cabling systems
  • Suitable for air handling spaces (plenum)
  • Load Rate 100 lbs.

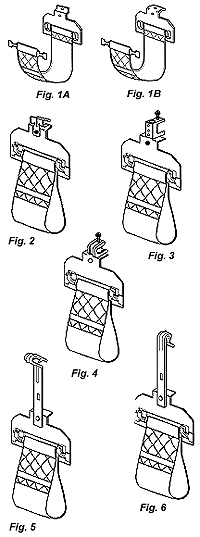

    CABLECAT 425 Adjustable Cable Support
    Catalog No. Fig No. Description Std Box Qty
    Adjustable Cable Support
    CAT425WM 1A Wall mount - Vertical surface 10
    CAT425 1B 1/4" Threaded rod or horizontal surface mount 10
    CAT425A6 1B 3/8" Threaded rod or horizontal surface mount 10
    Hammer-On Flange Clip
    CAT42524SM 2 Hammer-on 1/8" - 1/4" flange 10
    CAT42558SM 2 Hammer-on 5/16" - 1/2" flange 10
    CAT425912SM 2 Hammer-on 9/16" - 3/4" flange 10
    Beam Clamp
    CAT425BC 3 Screw-on 1/8" - 1/2" flange (rotates 360°) 10
    CAT425BC200 4 Screw-on 1/8" - 5/8" flange (rotates 360°) 10
    Purlin
    CAT425AF14 5 Hammer-on 1/16" - 1/4" Z purlin 10
    CAT425VF14 6 Hammer-on 1/16" - 1/4" vertical flange 10
    CAT425WMCD1B - Under floor pedestal

  • Due to a policy of continued product development, specifications are subject to change without notice.
