CADDY® Deck Hangers For Rods & Wires - Cellular Floor Deck

CADDY® Deck Hangers For Rods & Wires - Cellular Floor DeckPrint this page

ERICO offers the CADDY Deck Hangers for Rods and Wires from Cellular Floor Deck (H.H. Robertson or R.C. Mahon)

Features

  • Designed to support #8 wire, 1/4" or 3/8" plain rod, 1/4" or 3/8" threaded rod (with or without nuts) and 1" wide strap from Cellular Floors with hanger tabs
  • Positive locking through deck tab, vibration or twisting will not loosen

Applications

Designed to support wire, plain rod, threaded rod and wide strap from Cellular Floors with hanger tabs.

More Information

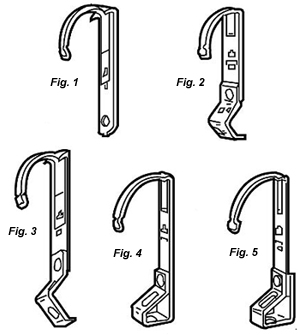

Catalog No. Fig No. Description Std Box Qty
DH2 1 For wrapping wire, "S" hooks, bolting straps 100
DH708 2 For #8 wire or 1/4" plain rod 100
DH6A 3 For 3/8" plain rod 100
DH4TI 4 For 1/4" threaded rod, with thread impression 100
DH6TI 4 For 3/8" threaded rod, with thread impression 100
DH6T 5 For 1/4" and 3/8" threaded rod, nuts required 100
Static load limit 160 lbs. Check with deck manufacturer for recommended load capacity.

Downloads

Availability

North America
Latin America

Due to a policy of continued product development, specifications are subject to change without notice.
CADDY, CADWELD, CRITEC, ERICO, ERIFLEX, ERITECH, and LENTON are registered trademarks of ERICO International Corporation.
