CADDY® Flexible Conduit And Cable Hanger

CADDY® Flexible Conduit And Cable HangerPrint this page

Erico offers the CADDY WMX series Flexible Conduit and Cable Hangers.

Features

  • Bundle runs of MC or AC or communications cables
  • Can be used with all flange clips or deck clip DH2 - also AO or AB, VF14, AF14, 122-123
NOTE:  Refer to local authorities and NEC Article 310 for derating ampacity when flexible power cables are used.

Applications

The CADDY WMX series Flexible Conduit and Cable Hanger supports bundles from a variety of structures when used with other CADDY fasteners.

More Information

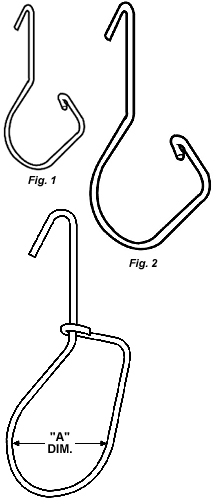

Catalog No. Fig No. Number of Runs
of MC/AC Cable That
May Be Supported
"A" Dimension Ultimate
Static Load Rating
Std Box Qty
WMX3 1 3 1-1/8" 50# 100
WMX6 2 6 1-3/4" 75# 100

Downloads

Availability

North America
Latin America

Due to a policy of continued product development, specifications are subject to change without notice.
