CADDY® Hangers

CADDY® HangersPrint this page

ERICO offers CADDY Hangers.

Features

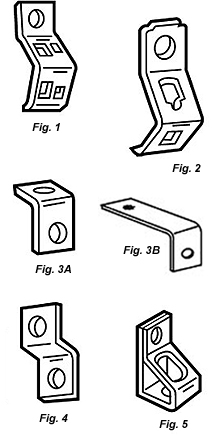

  • Permits preassembly of wire and plain rod (#8, 1/4" and 3/8") - see Fig. 1 & 2
  • Permits wire or chain drops from concrete or wood - see Fig. 3 & 4
  • Rod hanger available for 1-1/4" and 3/8" threaded rod with or without thread impression - see Fig. 5

Applications

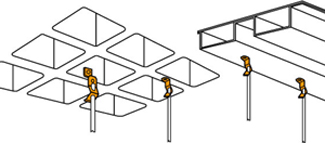

Hangers for wire or chain drops from concrete or wood.

More Information

Catalog No. Fig No. Description Static Load Limit Std Box Qty
708 1 For #8 wire or 1/4" plain rod 160 lbs. 100
6A 2 For 3/8" plain rod 160 lbs. 100
AB 3A Angle bracket with 1/4" hole 160 lbs. 100
AO 4 Offset bracket with 1/4" hole 160 lbs. 100
6T 5 For 1/4" or 3/8" threaded rod nuts required 160 lbs. 100
4TI 5 For 1/4" threaded rod with thread impression 160 lbs. 100
6TI 5 For 3/8" threaded rod with thread impression 160 lbs. 100

Due to a policy of continued product development, specifications are subject to change without notice.
