CADDY® Lathers Channel Hanger

CADDY® Lathers Channel HangerPrint this page

ERICO offers the CADDY Lathers Channel Hanger.

Features

  • Attaches 1-1/2" lathers channel to #8 wire, 1/4" plain rod
  • Attaches 2" lathers channel to 1/4" plain rod
  • Available in both center and sidemount for 1/4" rod
  • Will fit channel flange widths 7/16" thru 5/8"
  • No installation tools required

Applications

Provides pre-leveling of channel.

More Information

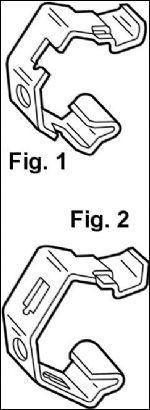

Lathers Channel Hangers Lathers Channel Hanger application

Fig 1
Catalog No.
Fig 2
Catalog No.
Size Std Box Qty
Wire or Rod Lathers Channel
2B1.5LS* #8 1-1/2" channel 100
4B1.4LS 4B1.5L 1/4" plain rod 1-1/2" channel 100
4B2LS 1/4" plain rod 2" channel 100
* Cannot be used on #9 wire.
Static load limit 160 lbs.

Downloads

Availability

North America
Latin America

Due to a policy of continued product development, specifications are subject to change without notice.
