CADDY® Reversible Beam Clamp with Side Mounting Threads

CADDY® Reversible Beam Clamp with Side Mounting ThreadsPrint this page

The CADDY Reversible Beam Clamp with Side Mounting Threads permits attachment of 1/4"-20 threaded components to the top or bottom flange of beams.

Features

  • Reversible to allow installation to both top and bottom flange
  • Hardened cup point setscrew to provide secure grip on tapered sections
  • Threaded to quickly accommodate attachment of 1/4" diameter threaded rod, bridle rings and boxes from three positions – top, bottom and back
  • Heavy-duty malleable iron construction with electrogalvanized finish for added corrosion protection

Applications

Easy installation to steel members up to 3/4" (20 mm) thick.

More Information

Catalog No. RS M C MAX
in
C MAX
mm
Coating Std Box Qty Top
Lbs
Top
Kg
Bottom
Lbs
Bottom
Kg
BC260025EG 1/4"-20 1/4"-20 3/4" 20 EG 100 250 1.10 100 0.44

NOTE: Safety factor of 3.5

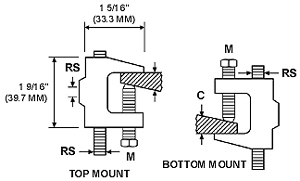

C = Flange Size
M = Bolt Size
RS = Rod Size

Downloads

Availability

North America
Latin America

Due to a policy of continued product development, specifications are subject to change without notice.
