CADDY® Reversible Beam Clamps - Models 300 & 310

CADDY® Reversible Beam Clamps - Models 300 & 310Print this page

CADDY Reversible Beam Clamps (Model 300 & 310) permit attachment of threaded rod (up to 5/8"-11) to top or bottom flanges (up to 1-1/4" thick).

Features

  • Reversible for attachment to top or bottom flange
  • Available for threaded rod sizes (#310 Series 3/8" and 1/2" diameter) (#300 Series 3/8" to 3/4" diameter)
  • Locknut and hardened cup point set screw to provide secure grip on tapered sections
  • Malleable iron clamp with electrogalvanized finish for good corrosion protection
  • #310 Series Large mouth opening (1-1/4" [32 mm]) to fit large thick flange steel beams or angles and large lip purlins
  • Available in hot dipped galvanized finish (special order)
  • Retaining strap available separately, for more secure attachment for industrial or seismic applications.

Applications

Attaches to a wide variety of structural sections including "C" Purlins, angles, channels and beams.

More Information

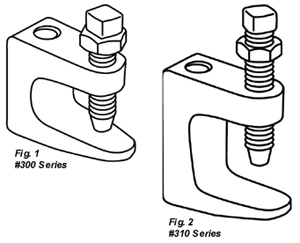

Catalog No. Fig No. RS C Max
in
H
in
P
in
Std Box Qty Top
Lbs
Bottom
Lbs
3000037EG 1 3/8" - 16 3/4" 1-9/16" 13/16" 100 500 250
3000050EG 1 1/2" - 13 3/4" 1-13/16" 1-1/16" 50 950 760
3000062EG 1 5/8" - 11 3/4" 1-13/16" 1-1/16" 50 950 760
3000075EG 1 3/4" - 10 3/4" 1-3/4" 1-1/8" 50 950 760
3100037EG 2 3/8" - 16 1-1/4" 2-1/16" 13/16" 50 500 250
3100050EG 2 1/2" - 13 1-1/4" 2-3/8" 1-1/16" 50 950 760
Coating - EG
NOTE: Safety factor of 3.5.

C = Flange Size
H = Fastener Height
P = Fastener Width
RS = Rod Size
