CADDY® Snap-In Support for MC/AC Cable Flexible Conduit

CADDY® Snap-In Support for MC/AC Cable Flexible ConduitPrint this page

The CADDY MAC series Snap-In Support for MC/AC Cable & Flexible Conduit permits fast attachment to virtually any structure.

Features

  • Manufactured with stabilizer legs for "wobble-free" support
  • One fastener for cable size 14-4, 12-4, 12-3, 12-2, 10-3, 10-2
  • Snaps into place on metal stud and beam flange up to 1/8" thick - no tools required for installation
  • MAC2 snaps in half to accommodate a single run of cable effectively making two clips from one
  • Pre-punched holes in clip allow it to be screwed to wood stud, concrete or block
  • Factory riveted assemblies are available for installation on flange, purlin, acoustical tee, drop wire, concrete, block or wood and metal stud
  • Delivers compliance for:
    • NEC Article 300-4(d) allowing cable to be positioned a minimum of 1-1/4" from face of stud
    • CEC Rule 12-618 for support of MC/AC cable

Applications

  • Studs
  • Acoustical tee
  • Beams
  • Purlins

More Information

Snap In Support application

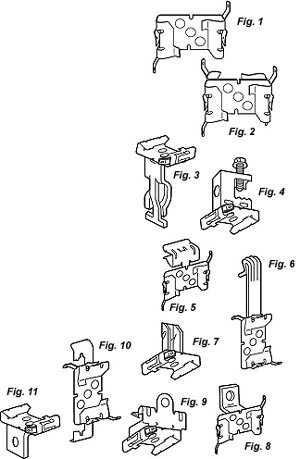

Catalog No. Fig No. Description Std Box Qty
1 to 4 Runs of MC/AC
MAC2T 2 Support 1 to 4 runs of MC/AC cable for metal stud 100
Double Run of MC/AC
MAC2 1 Metal or wood stud and 1/8" flange 100
MAC2ATA 3 Acoustical Tee 100
MAC2BC 4 1/8" thru 1/2" flange 100
MAC224SM 5 1/8" thru 1/4" flange 100
MAC258SM 5 5/2" thru 1/2" flange 100
MAC2912SM 5 1/16" thru 3/4" flange 100
MAC2VF14 6 1/16" thru 1/4" C purlin or vertical flange 100
MAC2123 7 Z purlin 100
MAC2AO 8 Offset bracket 100
MAC224 9 1/8" thru 1/4" flange – bottom mount rotates 360° 100
MAC258 9 5/16" thru 1/2" flange – bottom mount rotates 360° 100
MAC2912 9 1/2" thru 3/4" flange – bottom mount rotates 360° 100
MAC24Z34 10 #12 thru 1/4" wire, plain or threaded rod & 1/8" thru 3/8" flange 100
MAC26Z34 10 3/8" plain or threaded rod and 3/8" thru 9/16" flange 100
MAC2FB 11 Through metal stud 100

Due to a policy of continued product development, specifications are subject to change without notice.
