Snap On Box Supports for Metal/Wood Studs

Snap On Box Supports for Metal/Wood StudsPrint this page

ERICO offers Snap On Box Supports for Metal/Wood Studs.

Features

  • Spring steel for press on attachment
  • Center hole assists in consistent alignment, exact positioning and screw attachment
  • Delivers compliance with
    • NEC Article 300-4(d) when used for 4" and 4-11/16" outlet boxes to metal or wood studs,
    • CEC Rule 12-3012 for 4" and 4-11/16" outlet boxes to metal or wood studs

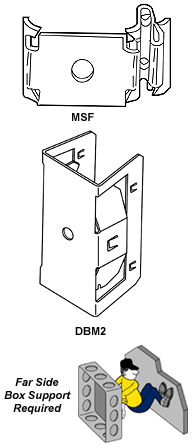

  • MSF requires hammer to attach clip to box
  • DBM2 attaches without hammer

Applications

For attaching outlet boxes to metal or wood supports.

More Information

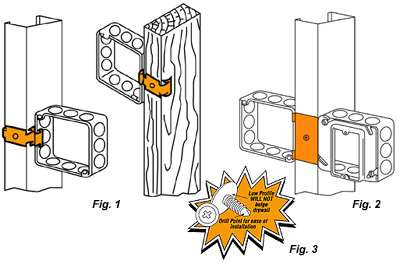

Snap On Box Supports for metal/wood studs applications

Catalog No. Fig No. Description Std Box Qty
MSF 1 Box support to outside of stud 100
DBM2 2 Double box mount support* 50
SMS8 3 Low profile, self tapping screws 1000
* Since metal stud widths vary, a CADDY SMS8 screw is recommended.
