CADDY® Snap On Fixture/Box Hanger

CADDY® Snap On Fixture/Box HangerPrint this page

ERICO offers the CADDY Snap On Fixture/Box Hanger.

Features

  • Snaps easily onto tee bar
  • Hanger comes complete with box mounting clip and 1/4"-20 screw
  • Supports from acoustical tee bar as well as main structure with the use of a drop wire
  • Dual height feature permits 1-1/2" deep electrical box to be mounted flush with tile or off-set 3/4" for plaster ring
  • 512A is height adjustable up to 8" allowing you to install double deep boxes, speaker cases and emergency light fixtures above acoustical tee
  • Not permitted for paddle fans

Applications

Used for installing double deep boxes, speaker cases and emergency light fixtures above acoustical tee.

More Information

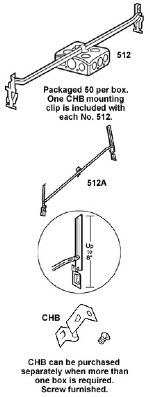

Catalog Number Description Std Box Qty
S3575BP50 1/4"-20 x 3/8" round head screw 50
S102438BP* 10-24 1/2" Rnd Hd Robertson screw 50
512 Electrical box hanger - 24" span 50
512TC* Electrical box hanger - 24" span 50
51212 Electrical box hanger - 12" span 50
51220 Electrical box hanger - 20" span 50
51230 Electrical box hanger - 30" span 50
CHB Box mounting clip 100
CHBTC* Box mounting clip 100
512A 8" height adjustable - 24" span 50
512ATC* 8" height adjustable - 24" span 50
Not to exceed 20 lbs. without independent wire support to BHC
*For Canadian boxes

Availability

North America
Latin America

Due to a policy of continued product development, specifications are subject to change without notice.
