CADDY® Strut-To-Beam System

CADDY® Strut-To-Beam SystemPrint this page

The CADDY 6000 series Strut-to-Beam System permits fast attachment of heavy equipment or service piping (up to 2000 lbs.) without drilling or welding the structural beam.

Features

  • Comes assembled in single profile 1-5/8" x 1-5/8" (41 x 41mm) or double profile back to back 1-5/8" x 1-5/8" (41 x 41mm) 12 gauge
  • For beam flanges up to 1-3/8" (41 x 41mm) 12 gauge
  • Hot dipped galvanized or stainless steel (AISI 304)
  • Clamp sets available separately

Applications

For fast attachment of heavy equipment or service piping (up to 2000 lbs.) without drilling or welding the structural beam.

More Information

Clamp 6000 (component)

Catalog No. Coating Std Box Qty
6120T6HD HDG 20
6120T6SS SS 20
NOTE: Packed 10 pair per box.

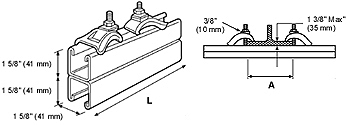

Single Profile

Catalog No. L A MAX Coating Std Box Qty
  in mm in mm
6A12SL20HD 20 500 14-1/2 370 HDG 1
6A12SL28HD 28 700 22-1/2 570 HDG 1
6A12SL36HD 36 800 30-1/2 775 HDG 1
NOTE: Assembled to fit min. 4-1/2" (115 mm) and max. 10-1/4" (260 mm)

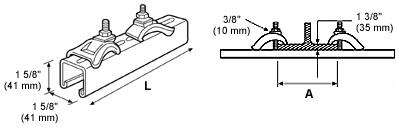

Double Profile

Catalog No. L A MAX Coating Std Box Qty
  in mm in mm
6A12A12HD 12 300 6-1/2 165 HDG 1
6A12A16HD 16 400 10-1/2 265 HDG 1
6A12A20HD 20 500 14-1/2 370 HDG 1
6A12A24HD 24 600 18-1/2 470 HDG 1
6A12A32HD 32 800 26-1/2 675 HDG 1

Load Rating


With a 4:1 safety factor
F1 is load rating at center of beam
F2 is load rating as stated
(B) from the edge of beam

A F1 B F2
in mm Lbs. kg in mm Lbs. kg
Single Profile
12 300 660 3.0 12 300 80 0.37
16 400 500 2.2 16 400 60 0.27
20 500 400 1.8 20 500 50 0.25
24 600 330 1.5 24 600 40 0.17
Double Profile
12 300 2000 9.3 12 300 250 1.10
16 400 1540 6.9 16 400 190 1.90
20 500 1210 5.4 20 500 150 0.70
24 600 990 4.4 24 600 125 0.60

A = Flange Width
