CADDY® Switch Box Or Conduit To Metal Stud

CADDY® Switch Box Or Conduit To Metal StudPrint this page

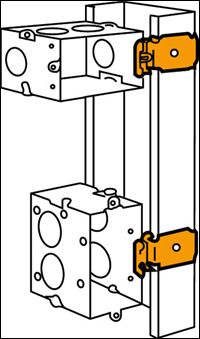

ERICO offers the Switch Box or Conduit to Metal Stud.

Features

  • Fits most switch boxes – Figs. 1-3 only
  • Fits most dry wall studding
  • Allows the switch box to protrude through any size dry wall – 1/4", 3/8", 1/2", 5/8" or 3/4"

Applications

For most dry wall studding.

More Information

Catalog No. Fig No. Description Std Box Qty
MFI 1 1/4"-20 thread impression to metal stud 100
MFS 2 With screw (adjustable 1/4" thru 3/4") 100
MFO 3 Riveted flush to stud face 100
FM250 3 Riveted for 1/4" dry wall 100
MF375 3 Riveted for 3/8" dry wall 100
MF500 3 Riveted for 1/2" dry wall 100
MF625 3 Riveted for 5/8" dry wall 100
MF750 3 Riveted for 3/4"" dry wall 100
6MF 4 3/8" conduit or BX to metal stud 100
812MF 4 1/2" to 3/4" conduit to metal stud 100
16MF 4 1" conduit to metal stud 100
8PF 5 1/2" conduit to metal stud 100
12PF 5 3/4" conduit to metal stud 100
16PF 5 1" conduit to metal stud 100
No Load Rating - Positioning Only

Downloads

Availability

North America
Latin America

Due to a policy of continued product development, specifications are subject to change without notice.
