CADDY® Wide Mouth Beam Clamps - Models BC13 / BC14

CADDY® Wide Mouth Beam Clamps - Models BC13 / BC14Print this page

CADDY Wide Mouth Beam Clamps (Models BC13 / BC14) permit quick attachment to beam flanges up to 1-5/8" thickness without drilling or welding.

Features

  • BC13 (Fig 1) Heavy duty steel beam clamp to fit up to 7/8" (22mm) thick flanges
  • BC14 (Fig 2) Heavy duty steel beam clamp to fit flanges from 5/8" (16 mm) to 1-5/8" (41 mm) thick
  • Threaded to allow quick and easy attachment of threaded rod or bolted components
  • Electrogalvanized finish for good corrosion protection
  • Available in hot dipped galvanized finish (special order)
  • Retaining strap available separately for more secure attachment or seismic applications
  • Hardened cup point setscrew to provide secure grip on tapered sections

Applications

 Permit quick attachment to beam flanges up to 1-5/8" thickness without drilling or welding.

More Information

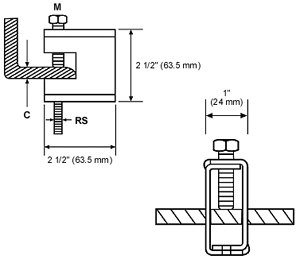

Catalog No. Fig No. RS M C MAX
in
Coating Std Box Qty Lbs
BC130025EG 1 1/4" - 20 3/8" - 16 7/8" EG 20 650
BC130037EG 1 3/8" - 16 3/8" - 16 7/8" EG 20 650
BC130050EG 1 1/2" - 13 1/2" - 13 7/8" EG 10 1100
BC130062EG 1 5/8" - 11 1/2" - 13 7/8" EG 10 1600
BC140037EG 2 3/8" - 16 3/8" - 16 1-5/8" EG 20 800
BC140050EG 2 1/2" - 13 1/2" - 13 1-5/8" EG 20 1300
BC140062EG 2 5/8" - 11 1/2" - 13 1-5/8" EG 10 1900
*Minimum flange thickness 5/8" (16 mm)

C = Flange Size
M = Bolt Size
RS = Rod Size
