CADDY® Hammer-On Z Purlin Clips

CADDY® Hammer-On Z Purlin ClipsPrint this page

ERICO offers CADDY Hammer-On Z Purlin Clips.

Features

  • Hammer-on clip compensates for angle of purlin
  • Provides method for attaching conduit and boxes to purlin

Applications

CADDY Hammer-On Z Purlin Clips are available pre-riveted to other CADDY fasteners for a variety of applications.

More Information

Z Purlin clips application

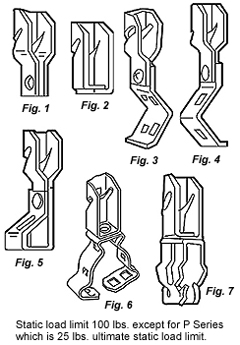

Catalog No. Fig No. Description Std Box Qty
122 1 For wrap wire, "S" hooks bolting straps 100
123 2 1/4" bottom hole to Z purlin for assembly 100
122708 3 For #8 wire or 1/4" plain rod to Z purlin 100
1226A 4 For 3/8" plain rod to Z purlin 100
1224TI 5 For 1/4" threaded rod to Z purlin 100
1226TI 5 For 3/8" threaded rod to Z purlin 100
1226T 5 For 1/4" and 3/8" threaded rod to Z purlin, nuts required 100
1236M 6 For 3/8" conduit to Z purlin 100
123812M 6 For 1/2" to 3/4"conduit to Z purlin 100
1238P 7* For 1/2" conduit to Z purlin 100
12312P 7* For 3/4"conduit to Z purlin 100
12316M 6 For 1"conduit to Z purlin 100
12316P 7* For 1"conduit to Z purlin 50
12320M 6 For 1 1/4"conduit to Z purlin 50
* Purlin thickness 13 - 16 gage
NOTE: When using Rigid conduit on P Series, use next size large clip (1/2" Rigid use 12-P)
NOTE: Loads indicated are for CADDY Fasteners only

Downloads

Availability

North America
Latin America

Due to a policy of continued product development, specifications are subject to change without notice.
