CADDY® CABLECAT Base Components Print this page

CADDY® CABLECAT has a number of base components.

Features

CABLECAT 32 and 21

Specifically designed for high-performance data cables
Wide base and smooth edges provide proper support and allow flexible installation with maximum bend radius and minimized pressure for cables

CABLECAT 12

Smaller than CABLECAT 31 and 21
Complies with the new 1997 TIA 569-A standard which allows for attachment to ceiling suspension wire and T-bar
Ideal choice for smaller runs of cables
Patent pending

CABLECAT 425

Can adjust to a 100mm or 150mm loop
Simple locking and unlocking feature allows for the addition of cables
Cables can be pulled through easily
Also suitable for air handling spaces (Plenum rated)

Applications

For high-performance Category 5 cables.

More Information

CABLECAT 12 CABLECAT 21 & 32 CABLECAT 425

CABLECAT 12 CABLECAT 21 & 32 CABLECAT 425

Description Part No. Loop Ø mm Protection Pack UL-tested Load

CAT12 181100 19 1 100 22kg

CAT21 181110 33 1 75 22kg

CAT32 181120 50 1 50 22kg

CAT425 181130 100/150 1 20 45kg

Fill Rate

Cable Type	Pair	AWG	Cable meas. max.	CAT 12	CAT 21	CAT 32	CAT 425
UTP	4	24	5 mm dia.	16 -> 1	50 -> 2.75	80 -> 4.5	425 -> 22.75
FTP	4	24	6 mm dia.	11 -> 0.75	35 -> 2.25	55 -> 3.5	300 -> 18.25
SFTP	4	24	6 mm dia.	11 -> 1.25	35 -> 4	55 -> 6	300 -> 32
SFTP	4	23	7 mm dia.	8 -> 1	25 -> 3	40 -> 4.75	225 -> 25.25
F/STP	4	23	8.5 mm dia.	5 -> 0.75	17 -> 2.25	27 -> 3.5	150 -> 18.25
S/STP	4	23	8.5 mm dia.	5 -> 0.75	17 -> 2.5	27 -> 4	150 -> 20.5

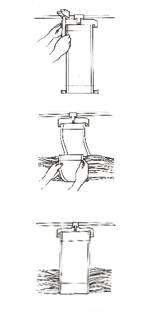

CABLECAT Installation

Step 1
Attach to structure

Step 2
Position flexible support around cables

Step 3
Insert bar into locking tabs
