CADDY® Accessories - Chain, Hooks, and Perforated Banding

CADDY® Accessories - Chain, Hooks, and Perforated BandingPrint this page

ERICO offers a range of accessories to complement CADDY fixing systems, including chain and perforated banding.

Features

Chains - Standard or Knot

  • Standard (type CHN) or knot chain (type CHK), for suspending services up to a nominal load of 115 kg
  • Electrozinc or stainless steel
  • Supplied in preboxed quantities of 30 metres (CHK 32 = 25 m)
  • 40 box point of sale display unit

Hooks - S-Hook or KN-Hook

  • For suspending chains, perforated bands, etc for services with a nominal weight from 12 to 40 kg
  • Electro zinc or stainless steel

Perforated Banding - ABP or BP

  • For suspending electrical, heating, plumbing or ventilation services up to 75 kg (BP type)
  • Supplied in 10 metre boxes, or 25m coil
  • Available in electro zinc plated, hot dipped galvanized, copper, stainless steel (AISI 316) or plastified finish

Applications

 Use with Caddy Fixing Systems.

More Information

Standard Chain (CHN) - For suspending services up to a nominal load of 115 kg

Description Part No. A x B mm Protection Pack Load
CHN13K 386780 16 x 8 1 30 m 20
CHN15K 385910 29 x 10 1 30 m 55
CHN17K 385920 32 x 12 1 30 m 115
CHN15K-2 591500 29 x 10 2 30 m 55
CHN17K-2 591510 32 x 12 2 30 m 115

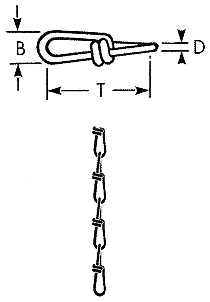

Knot Chain (CHK) - For suspending services up to a nominal load of 95 kg

Description Part No. B mm D mm T mm Protection Pack Load
CHK22K 385860 9 2 28 1 30 m 37
CHK25K 385870 10 2.2 31 1 30 m 50
CHK27K 385880 11 2.5 35 1 30 m 65
CHK30K 385890 12.5 2.8 39 1 30 m 80
CHK32K 385900 14 3.1 41 1 25 m 95

S-Hook - For suspending chains, perforated bands, etc for services with a nominal weight from 12 to 40 kg

Description Part No. Ø mm Protection Pack Load
S30 591570 2 1 100 12
S40 591580

3.5

1 100 25
S50 591590 5 1 100 40
S40-2 591650 3.5 2 100 25
S50-2 591660 5 2 100 40

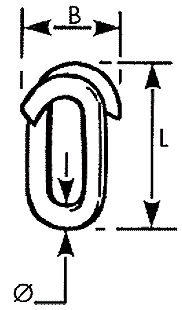

KN-Hook - For suspending chains, perforated bands, etc for services with a nominal weight from 37 to 95 kg

Description Part No. B mm L mm Ø mm Protection Pacl Load
KN30 380050 6.5 16.5 3 1 100 37
KN40 380060 8 20 4 1 100 55
KN50 380070 9.5 23 5 1 100 95

ABP - Perforated banding for suspending electrical, heating, plumbing or ventilation services

Description Part No. A mm Ø mm Protection Pack
ABP12G 583920 12 x 0.8 5 1 10 m
ABP17G 583930 17 x 0.8 7 1 10 m
ABP26G 583940 26 x 1 8 1 10 m
ABP12Cu 583970 12 x 0.8 5 Cu 10 m
ABP17Cu 583980 17 x 0.8 7 Cu 10 m
ABP26Cu 583990 26 x 1 8 Cu 10 m
ABP12I 584020 12 x 0.8 5 2 10 m
ABP17I 584030 17 x 0.8 >7 2 10 m
ABP26I 584040 26 x 1 8 2 10 m
ABP12PL 584160 12 x 0.8 5 3+plastif 10 m
ABP17PL 584170 17 x 0.8 7 10 m
ABP26PL 584180 26 x 1 8 10 m

BP - Perforated banding for suspending electrical, heating, plumbing or ventilation services up to 75 kg

Description Part No. A mm Protection Pack
BP17 591350 17x0.6 1 25
BP25 591360 25x0.8 1 25

Availability

Europe/Middle East/Africa

Due to a policy of continued product development, specifications are subject to change without notice.
