The ultimate welded connection that will never loosen, corrode or increase in resistance just got BETTER.
CADWELD® PLUS is the latest advancement in the continuing evolution
of ERICO's exothermic products. It is a simplified method of
performing exothermically welded electrical connections.
Features
- The CADWELD PLUS System offers all the benefits of conventional CADWELD connections and more . . .
- Consists of a tamper proof, disposable, moisture resistant
welding material cup. The welding material, disk and ignition
source are incorporated into the self-contained package
- Color coded welding material reduces risk of misapplication
and gives a simple visual verification of the correct welding material
size
- Electronic Control Unit means no starting material is required and makes ignition very easy
- Six foot control unit lead gives increased flexibility in hard to reach areas
Applications Designed for use in all standard CADWELD molds, including CADWELD® MULTI.
More Information

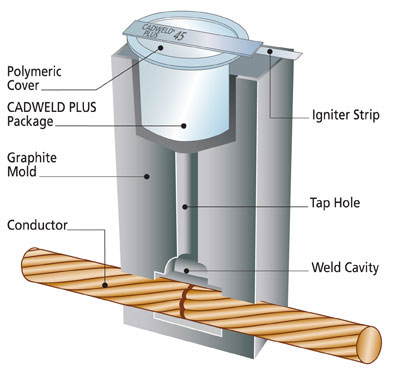

Cutaway view of CADWELD PLUS |
CADWELD PLUS Welding Material comes in color-coded packages to reduce risk of misapplication. |
CADWELD PLUS Installation
 |
 |
Step 1
Insert CADWELD PLUS package into mold. |
Step 2
Attach Control Unit termination clip to ignition strip. Place baffle onto mold. |
 |
 |
Step 3
Press and hold Control Unit switch and wait for ignition. |
Step 4
Open the mold and remove the expended steel cup - no special disposal required. |
CADWELD molds are now shipping with integral graphite baffles suitable for use with CADWELD PLUS.
Due to a policy of continued product development, specifications are subject to change without notice.
CADDY, CADWELD, CRITEC, ERICO, ERIFLEX, ERITECH, and LENTON are registered trademarks of ERICO
International Corporation.
