CADDY® CAT TRAX Continuous Cable Support System

CADDY® CAT TRAX Continuous Cable Support SystemPrint this page

The CADDY CAT TRAX Continuous Cable Support system provides a cable tray alternative with steel brackets and mesh to contain the cable bundle.

Features

  • Lightweight and flexible for easy installation
  • Attaches to any main or substructure when used in concert with other CADDY fasteners
  • Easy to install and move - even around corners
  • Easy to load with large cable containment area
  • Eliminates bending, crimping or kinking of cable
  • Cost-effective and convenient snap-together kits
  • Rod and structure attachments sold separately
  • Kit contains 5 steel support brackets, flexible mesh, and all necessary clips
  • Sold in an easy-to-carry "kit" carton
  • Transition kit facilitates directional changes

Applications

Lightweight support for low voltage/high performance cable

More Information



  1. Attach main support to threaded rod.
  2. Plastic mesh in main support hanger and lock in with spring steel clip.
  3. Place cable in mesh. Secure with steel retaining strap. (The removable retaining strap allows for future cables.)

Note: This is a guide to installation only. Full instructions will be supplied at time of purchase.

Details by Region: North and Latin America

North and Latin America

  • Easy to load with 32 square inches of cable containment area - capacity exceeds a comparable 2 x 12 tray
  • Compliant with NEC and ANSI/EIA/TIA structured cabling systems standards

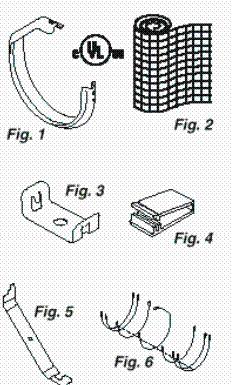

Catalog No. Fig No. Description Includes
CATTRAX25 1 CatTrax Continuous (5) steel support brackets
2 Cable Support Kit 25 ft. roll flexible mesh
3 (15) spring steel bracket clips
4 (10) plastic splice clips
5 (5) steel retaining clips
CT128TRK 6 CatTrax (5) wire transition pieces
5 Transition Kit (5) steel retaining straps
4 (30) plastic splice clips
Mesh also available pre-boxed in 50' increments up to 500'. Contact ERICO for more information.

Due to a policy of continued product development, specifications are subject to change without notice.
