Proper bonding is essential to create an equipotential plane between service grounds and equipment during fault and transient conditions. This equipotential plane provides a near zero voltage differential and serves to protect people and equipment during these events. The most popular bonding product in use today is the ground bar or bonding bar.

Features

  • Provide a convenient, single-point grounding and bonding location

Applications

ERICO offers a wide variety of stocked configurations for the wireless telecommunications industry, as well as a perimeter bus system for halo grounds.

More Information

Ground Bars
Part No. T (in) W (in) L (in) Description
EGBA14112EE 1/4 1 12 Ground Bar (Insul & Brkt) with hole pattern EE
EGBA14212EE 1/4 2 12 Ground Bar (Insul & Brkt) with hole pattern EE
EGBA14212HH 1/4 2 12 Ground Bar (Insul & Brkt) with hole pattern HH
EGBA14212TES 1/4 2 12 Ground Bar (Insul & Brkt) with hole pattern GG and a pair of 5/16" holes (3/4" space) on either end
EGBA14215JJ 1/4 2 15 Ground Bar (Insul & Brkt) with hole pattern JJ
EGBA14215TES 1/4 2 15 Ground Bar (Insul & Brkt) with hole pattern GG and a pair of 5/16" holes (3/4" space) on either end
EGBA14410FF 1/4 4 10 Ground Bar (Insul & Brkt) with hole pattern FF
EGBA14412AA 1/4 4 12 Ground Bar (Insul & Brkt) with hole pattern AA
EGBA14412AA1TT 1/4 4 12 Tinned Ground Bar (Insul & Brkt) with hole pattern AA and a #2 solid tinned pigtail 26' long
EGBA14412BB 1/4 4 12 Ground Bar (Insul & Brkt) with hole pattern BB
EGBA14412CC 1/4 4 12 Ground Bar ( Insul & Brkt) with hole pattern CC
EGBA14412MM 1/4 4 12 Ground Bar (Insul & Brkt) with hole pattern MM
EGBA14412NN 1/4 4 12 Ground Bar (Insul & Brkt) with no holes
EGBA14414KK 1/4 4 14 Ground Bar (Insul & Brkt) with hole pattern KK
EGBA14420CC 1/4 4 20 Ground Bar (Insul & Brkt) with hole pattern CC
EGBA14420CCSKY 1/4 4 20 Ground Bar (Insul & Brkt) with hole pattern CC and a pair of 5/16" holes on either end
EGBA14420CCT 1/4 4 20 Tinned Ground Bar (Insul & Brkt) with hole pattern CC
EGBA14420HIGT 1/4 4 20 Tinned Ground Bar (Insul & Brkt), 11 pair of 7/16" holes (13/16" between rows & 1" between columns), 2 pairs of 11/16" holes 1-334" spacing
EGBA14420NN 1/4 4 20 Ground Bar (Insul & Brkt) with no holes
EGBA14420HIG 1/4 4 20 Ground Bar (Insul & Brkt), 11 pair of 7/16" holes (13/16" between rows & 1" between columns), 2 pairs of 11/16" holes 1-334" spacing
EGBA14424CIGBE 1/4 4 24 Ground Bar (Insul & Brkt) CIGBE
EGBA14424CIGBET 1/4 4 24 Tinned Ground Bar (Insul & Brkt) CIGBE
EGBA14424MM 1/4 4 24 Ground Bar (Insul & Brkt) with hole pattern MM
EGBA14424CC 1/4 4 24 Ground Bar (Insul & Brkt) with hole pattern CC
EGBA14430CC 1/4 4 30 Ground Bar (Insul & Brkt) with hole pattern CC

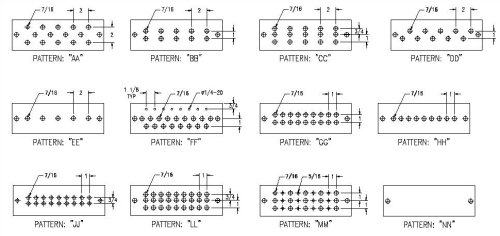

Ground Bar Hole Patterns

Ground Bar Hole Patterns

Perimeter Bus System
Part No.

T
(in)

W
(in)

 L
(in)

Description
Straight Bus
EPGC181120 1/8 1 120 Perimeter Ground Bus, with 7/16" Holes on 30" Centers
EPGC182120 1/8 2 120 Perimeter Ground Bus, with 7/16" Holes on 30" Centers
EPGC184120 1/8 4 120 Perimeter Ground Bus, with 7/16" Holes on 30" Centers
EPGC141120 1/4 1 120 Perimeter Ground Bus, with 7/16" Holes on 30" Centers
EPGC142120 1/4 2 120 Perimeter Ground Bus, with 7/16" Holes on 30" Centers
EPGC144120 1/4 4 120 Perimeter Ground Bus, with 7/16" Holes on 30" Centers
90° Angle for Walls
EPGC1816X6 1/8 1 6 X 6 90° angle for around walls
EPGC1826X6 1/8 2 6X6 90° angle for around walls
EPGC1846X6 1/8 4 6X6 90° angle for around walls
EPGC1416X6 1/4 1 6X6 90° angle for around walls
EPGC1426X6 1/4 2 6X6 90° angle for around walls
EPGC1446X6 1/4 4 6X6 90° angle for around walls
Flat 90° Angle for Doors
EPGC1818X8FL 1/8 1 8X8 Flat 90° angle for around doorways
EPGC1828X8FL 1/8 2 8X8 Flat 90° angle for around doorways
EPGC1848X8FL 1/8 4 8X8 Flat 90° angle for around doorways
EPGC1418X8FL 1/4 1 8X8 Flat 90° angle for around doorways
EPGC1428X8FL 1/4 2 8X8 Flat 90° angle for around doorways
EPCG1448X8FL 1/4 4 8X8 Flat 90° angle for around doorways

Ground Bars Mounting Kits
Part No. Description
B548A41 Mounting Kit for 1" and 2" Wide Bars, SS Hdwr & 3/8" Fasteners, Insulator and Bracket
B548A42 Mounting Kit for 3" and 4" Wide Bars, SS Hdwr & 3/8" Fasteners, Insulator and Bracket
B548A01 Mounting Kit for 1" and 2" Wide Bars, 1/2" Fasteners, Insulator and Bracket
B548A02 Mounting Kit for 3" and 4" Wide Bars, 1/2" Fasteners, Insulator and Bracket

Availability

North America
Latin America
