ERITECH® Inspection Wells

ERITECH® Inspection WellsPrint this page

Erico offers ERITECH® Inspection Wells, available in Polymer Concrete or High Density Polyethylene

Features

Polymer Concrete Inspection Wells

  • Constructed of polymer concrete reinforced with heavy weave fiberglass resulting in high strength and minimal weight
  • Enclosures and covers are rated for 10,000 lbs maximum load
  • Bolt down cover, skid resistant surface
  • Color is concrete gray

High Density Polyethylene Inspection Wells

  • Constructed of high density polyethylene
  • Very resistant to acids and chemicals

Applications

ERITECH inspection wells provide a convenient access point to test the integrity and performance of grounding electrodes and connections. Periodic testing of the grounding system is necessary to monitor its performance and alert the facility owner to possible maintenance issues.

More Information

Polymer Concrete Inspection Wells

Inspection Well T416a Inspection Well T416d Inspection Well T416f
Part Number: T416A Part Number: T416D Part Number T416F

High Density Polyethylene Inspection Wells

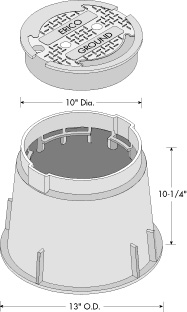

Part Number: T416B

  • Color - green
  • Cover weight - 1.5 lbs
  • Knock outs - 2 per box (3.5" x 1.5")
  • Box weight - 3 lbs

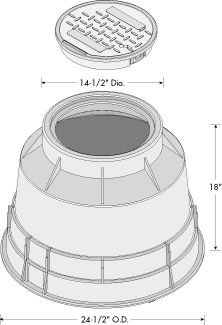

Part Number: T416C

  • Color - black
  • Cover weight - 4.2 lbs
  • Box weight - 13.4 lbs
  • Pipe slot - 2 places

Related Products

Availability

North America
Latin America

Due to a policy of continued product development, specifications are subject to change without notice.
