LENTON®  Standard Couplers are designed to splice the same diameter bars where one bar is free to move and can be rotated.

Features

  • Unique self-aligning taper-threaded design provides continuity and structural integrity
  • Spliced bars behave as continuous lengths of reinforcing steel bars by providing full strength in tension, compression and stress reversal applications
  • Designed to withstand man-made blasts, and other seismic events
  • Quick and easy to install
  • Develops higher tensile strength than lap splicing
  • Provides full load transfer with the slimmest and shortest coupler possible
  • Product Performance – LENTON standard couplers are designed to meet or exceed:
      AASHTO®
      ACI® 318 Type 1 (125% Specified Yield)
      ACI 318 Type 2 (Specified Ultimate)
      AS3600
      BS EN1992-1-1
      Caltrans Service
      Caltrans Ultimate
      DIN EN 1992-1-1
      IBC® Type 1 (125% Specified Yield)
      IBC Type 2 (Specified Ultimate)
      Sellafield Ltd. Std. A.0391_1
      NEN-EN 1992-1-1
      NF A 35-020-1
      ÖNORM EN 1992-1-1
      US Army Corps of Engineers

    Contact ERICO for specifications not listed.

Applications

Designed to splice the same diameter bars where one bar is free to move and can be rotated.

More Information

LENTON Standard Couplers - A2
Standard in North & Latin America, Middle East, Africa, Asia, Australia
LENTON Standard Coupler A2 dimensions A=Diameter
B=Length of coupler bar
D=Bar engagement

Rebar Size Designation Part No.
in-lb Metric Canadian Soft Metric
4 12 mm 10M 13 EL12A2*
5 16 mm 15M 16 EL16A2*
6 20 mm 20M 19 EL20A2*
7 22 mm - 22 EL22A2*
8 25 mm 25M 25 EL25A2
9 28 mm 30M 29 EL28A2
10 32 mm - 32 EL32A2
11 36 mm 35M 36 EL36A2
- 40 mm - - EL40A2
14 43 mm 45M 43 EL43TA2
- 50 mm - - EL50A2
18 57 mm 55M 57 EL57TA2

Part No. A B D Weight
  in mm in mm in mm lb kg
EL12A2*  11/16 17 1-5/8 41 9/16 14 0.20 0.09
EL16A2* 7/8 22 2-3/16 56 7/8 22 0.30 0.14
EL20A2* 1-1/16 27 2-13/16 71 1-1/8 29 0.50 0.23
EL22A2* 1-3/16 30 3-5/32 80 1-1/4 32 0.70 0.32
EL25A2 1-3/8 35 3-11/32 85 1-3/8 35 0.91 0.41
EL28A2 1-1/2 38 3-19/32 91 1-1/2 38 1.20 0.54
EL32A2 1-3/4 44 3/25/32 96 1-9/16 40 1.60 0.73
EL36A2 1-7/8 48 3/31/32 101 1-11/16 43 2.14 0.97
EL40A2 2-3/16 52 4-15/16 125 2-3/16 56 2.35 1.07
EL43TA2 2-1/4 57 5-1/4 133 2-1/8 54 3.40 1.54
EL50A2 2-9/16 64 6-13/32 163 2-13/16 72 4.40 2.00
EL57TA2 3 76 6-1/2 165 2-3/4 70 6.40 3.08

* Use hex material (measured across the flats), others use round material.

LENTON Standard Couplers - A12
Standard in Europe, Asia, and select regions in U.S.

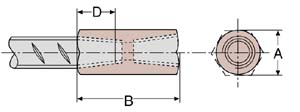

LENTON Standard Coupler A12 dimensions A=Diameter
B=Length of coupler bar
D=Bar engagement

Rebar Size
Designation
Metric (mm)
Part No. Art. No. A
mm
B
mm
D
mm
Weight
kg
10 EL10A12 150000 17* 48 18 0.07
12 EL12A12 150010 17* 49 18 0.06
14 EL14A12 150020 22* 55 21 0.13
16 EL16A12 150030 22* 61 24 0.13
18 EL18A12 150040 27* 71 29 0.24
20 EL20A12 150050 27* 88 36 0.27
22 EL22A12 150060 33 91 38 0.40
25 EL25A12 150070 33 96 41 0.36
28 EL28A12 150080 37 101 43 0.46
30 EL30A12 150090 37 121 53 0.51
32 EL32A12 150100 42 107 46 0.61
34 EL34A12 150110 41 128 56 0.64
36 EL36A12 150120 46 121 53 0.78
38 EL38A12 150130 52 124 54 1.19
40 EL40A12 150140 52 131 58 1.13
43 EL43A12 150150 58 155 68 1.86
50 EL50A12 150160 64 163 71 2.00
57 EL57A12 150170 75 189 84 3.39
* Use hex material (measured across the flats), others use round material.

How to Specify
By Name:
Mechanical connections shall be LENTON taper threaded couplers as manufactured by ERICO.

By Generic Description:
The mechanical connection shall meet building code requirements of developing in tension or compression, as required by local standards/codes . The mechanical connection shall be the positive locking, taper threaded type coupler manufactured from high quality steel. The bar ends must be taper threaded using the manufacturer’s requirements. The couplers shall be manufactured using registered quality systems around the world.
