4-Way Sway Brace Clamp

4-Way Sway Brace ClampPrint this page

The TP240 is recommended for longitudinally bracing lateral sway bracing pipes against sway and seismic disturbance.

Features

  • Made of carbon steel with black or zinc finish (Furnished black unless otherwise specified)
  • May be visually inspected - clamp is properly loaded when the clamp ends touch
  • Oversized roll-cut pipe ends slide easily into the clamps
  • Pre-assembled, two-piece construction rotates to accommodate any angle between longitudinal and lateral bracing pipes

Applications

Recommended for longitudinally bracing lateral sway bracing pipes against sway and seismic disturbance. Also useful for riser bracing.

More Information

 Installation Information

  1. Slide one clamp onto the lateral bracing pipe.
  2. Rotate the remaining clamp to accommodate the desired orientation of the longitudinal bracing pipe.
  3. Slide the longitudinal bracing pipe into the remaining clamp.
  4. Tighten one nut until the clamp ends touch.

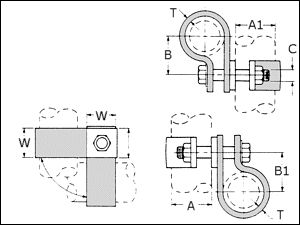

Bracing Pipe Size A X A1 B B1 C T W Weight Each Std Box Qty
1 x 1 1-3/8 1-3/8 3/8 3/16 1 .78 50
1 x 1-1/4 1-3/8 1-3/4 3/8 3/16 1 .89 50
1-1/4 x 1-1/4 1-3/4 1-3/4 3/8 3/16 1 1.0 50
Dimensions in inches

Availability

Europe/Middle East/Africa

Due to a policy of continued product development, specifications are subject to change without notice.
