CADDY® PYRAMID RL Series Roller-based Thermoplastic Support
 The CADDY® PYRAMID line of
rooftop pipe supports offers superior load capacity and dramatically
reduces installation time by replacing slow, heavy and labor-intensive methods
to support pipe, conduit, duct, cable tray and equipment.
To provide installers with a more extensive range of
products for roofing applications, ERICO has expanded this popular line with
the CADDY® PYRAMID RL Series Roller-based Thermoplastic Supports.
With a unique design and continuous bottom surface, the supports provide
uniform load distribution and help protect the roof membrane from damage caused
by concentrated pressure.
The supports feature an engineered thermoplastic material in
both bases and rollers that is UV-stabilized and weatherproof. A hot-dipped
galvanized finish on the strut and hardware provides superior corrosion
resistance and durability. All thermoplastic bases are made from recycled
material and can contribute toward earning LEED credit.
The CADDY PYRAMID RL Series is structurally engineered to
support up to 6" diameter (Nom.) Sch. 40 water-filled steel pipe at a maximum
spacing of 10". Because the supports are height-adjustable, they can
accommodate elevation changes on the roof and are designed to keep conduit away
from higher ambient temperature, as required by code in many areas.
The supports feature a roller capability, which allows
longitudinal movement of pipe, such as from thermal expansion or contraction.
To accommodate elevation changes on the roof, the CADDY
PYRAMID RL Series is available as a fixed roller support or adjustable-height
roller support.
All CADDY PYRAMID products are weatherproof and have passed
a variety of rigorous tests, including an extreme temperature test. By
utilizing unique materials and finishes, the supports offer superior corrosion
protection. Unlike wood blocks, the supports are also designed to protect the
roof membrane from damaged caused by the movement of pipe expansion and
contraction.
Features - High load capacity: Structurally engineered to support up
to 6" diameter (Nom.) Sch. 40 water-filled steel pipe at maximum spacing of
10'.
- Roof friendly: Unique design and continuous bottom surface
provide uniform load distribution and help protect the roof membrane from
damage caused by concentrated pressure.
- Height adjustable: Designed to accommodate elevation
changes on the roof. Keeps conduit away from higher ambient temperature, as
required by code in many areas.
- Roller capability: Allows longitudinal movement of pipe,
such as from thermal expansion or contraction.
- Long-lasting performance: Engineered thermoplastic
material in both bases and rollers is UV-stabilized and weatherproof. All strut
and hardware feature a hot-dipped galvanized finish for superior corrosion
resistance.
- Supports green building requirements: All thermoplastic
bases are made from recycled material and can contribute toward earning LEED
credit.

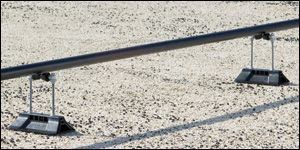

Applications To support pipe and conduit on rooftop applications.

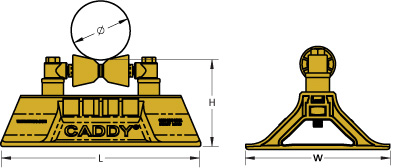

More Information Fixed Roller Supports:
- Provides
roller capability for up to 6" nominal pipe with
5.5" fixed height
- Polymeric
rollers will not rust, helping to ensure
long-lasting performance and smooth roller action
- Hot-dipped galvanized finish on steel roller
axle,
fittings and other hardware provides superior corrosion protection
- Supports up
to 6" diameter (Nom.) Sch. 40 water-filled
steel pipe at maximum spacing of 1'
* Maximum diameter of Sch. 40 water-filled steel pipe at maximum 10' support spacing

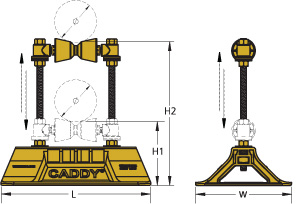

Adjustable-Height Roller Supports:
- Can accommodate elevation changes of up to 16" off the
roof with up to 6" diameter (Nom.) pipe
- Polymeric rollers will not rust, helping to ensure
long-lasting performance and smooth roller action
- Hot-dipped galvanized finish on steel roller axle,
fittings and other hardware provides superior corrosion protection
- Supports up
to 6" diameter (Nom.) Sch. 40 water-filled
steel pipe at maximum spacing of 10'
* Maximum diameter of Sch. 40 water-filled steel pipe at maximum
10' support spacing
