CADDY® PYRAMID ST Series Strut-based Thermoplastic Supports
 The CADDY® PYRAMID line of
rooftop pipe supports offers superior load capacity and
dramatically reduces installation time by replacing slow, heavy and
labor-intensive methods to support pipe, conduit, duct, cable tray and
equipment.
To
provide installers with a more extensive range of products for roofing
applications, ERICO has expanded this popular line with the CADDY®
PYRAMID ST Series Strut-based Thermoplastic Supports. These innovative
supports are strut-based and utilize an engineered thermoplastic base with a UV
stabilizer. The CADDY PYRAMID ST Series offers excellent load distribution a
with high load rating – up to 1,500 lbs – for supporting pipe, conduit, duct,
cable tray and equipment.
Featuring a unique design and continuous bottom surface, the
CADDY PYRAMID ST Series provides uniform load distribution to help protect the
roof membrane from damage caused by concentrated pressure. All strut and
hardware feature a hot-dipped galvanized finish for superior corrosion
resistance. All thermoplastic bases are made from recycled material and can
contribute toward earning LEED credit.
To accommodate elevation changes on the roof, the CADDY
PYRAMID ST Series is available as a fixed strut support or adjustable-height
strut support.
All CADDY PYRAMID products are weatherproof
and have passed a variety of rigorous tests, including an extreme temperature
test. By utilizing unique materials and finishes, the supports offer superior
corrosion protection. Unlike wood blocks, the supports are also designed to
protect the roof membrane from damage caused by the movement of pipe expansion
and contraction.

Features - Versatile: Ideal for a variety of rooftop applications;
provides superior support for pipe, conduit, duct, cable tray and equipment.
- High load capacity: Structurally engineered to support up
to 1,500 lbs.
- Roof friendly: Unique design and continuous bottom surface
provide uniform load distribution and help protect the roof membrane from
damage caused by concentrated pressure.
- Height adjustable: Designed to accommodate elevation
changes on the roof. Installation at a greater distance from the roof may be
required by some codes.
- Long-lasting performance: Engineered thermoplastic
material is UV-stabilized and weatherproof. All strut and hardware feature a
hot-dipped galvanized finish for superior corrosion resistance.
- Supports green building requirements: All thermoplastic
bases are made from recycled material and can contribute toward earning LEED
credit.
Applications To support pipe, conduit, duct, cable tray and equipment on
rooftop applications.

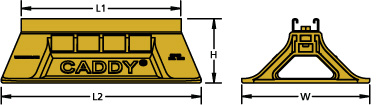

More Information Fixed Strut
Supports:
- Provide fixed-height
mounting platform 4” or 6” off the roof surface and 10” or 16” of usable strut
length
- Maximum recommended load is
up to 1,500 lbs
- Hot-dipped galvanized finish provides superior corrosion protection
* Max. recommended load at 10.6 psi roof loading. Contact project or roofing engineer for maximum allowable load on individual project roof system

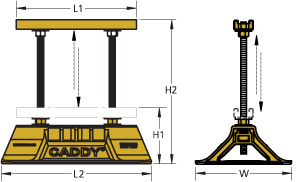

Adjustable-Height Strut Supports:
- Allow elevation change up to 16” off the roof surface with up to 10” or 17” of usable strut length
- Maximum recommended load is up to 1,500 lbs
- Hot-dipped galvanized finish provides superior corrosion protection
* Max. recommended load at 10.6 psi roof loading. Contact project or roofing engineer for maximum allowable load on individual project roof system.
