RMX Clip

RMX ClipPrint this page

RMX Series clip can be pre-riveted to other CADDY structure clips to handle a variety of applications.

Features

Supports non-metallic  sheathed cable

Applications

When used in combination with other CADDY Fasteners, RMX can be installed on main or substructures, drop wire and acoustical tee.

NOTE: Not for use in Canada on non-metallic sheathed cable or power application.

More Information

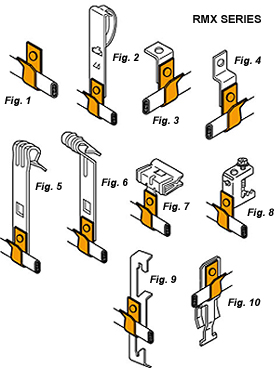

Catalog No. Fig No. Cable Size Description Std Box Qty
RMX 1 14-2 and 12-2 w/ Ground Wire Clip for Non-Metallic Cable 100
RMXDH2 2 14-2 and 12-2 w/ Ground Wire Non-Metallic Cable to Deck 100
RMXAB 3 14-2 and 12-2 w/ Ground Wire Non-Metallic Cable to Angle Bracket 100
RMXAO 4 14-2 and 12-2 w/ Ground Wire Non-Metallic Cable to Offset Bracket 100
RMXVF14 5 14-2 and 12-2 w/ Ground Wire Non-Metallic Cable to C Purlin 1/16" to 1/4" Thick 100
RMXAF14 6 14-2 and 12-2 w/ Ground Wire Non-Metallic Cable to Z Purlin 1/16" to 1/4" Thick 100
RMXBC 8 14-2 and 12-2 w/ Ground Wire Non-Metallic Cable to Beam thru 1/2" Flange 100
RMX4Z34 9 14-2 and 12-2 w/ Ground Wire Non-Metallic Cable to #12 Wire thru 1/4" Plain Rod or Beam 1/8" thru 3/8" Flange 100
RMX6Z34 9 14-2 and 12-2 w/ Ground Wire Non-Metallic Cable 3/8" Plain or Threaded Rod 3/8" thru 7/16" Flange 100
RMXATS 10 14-2 and 12-2 w/ Ground Wire Non-Metallic Cable to Acoustical "Tee-Bar" 100
RMX24 7 1/8"-1/4" Thick Flange 14-2 and 12-2 with Ground Wire Non-Metallic Cable to Beam 100
RMX58 7 5/16"-1/2" Thick Flange 100
RMX912 7 9/16"-3/4" Thick Flange 100


Due to a policy of continued product development, specifications are subject to change without notice.
