HangerMateÂ® Threaded Rod Anchoring System

HangerMate® Threaded Rod Anchoring System Print this page

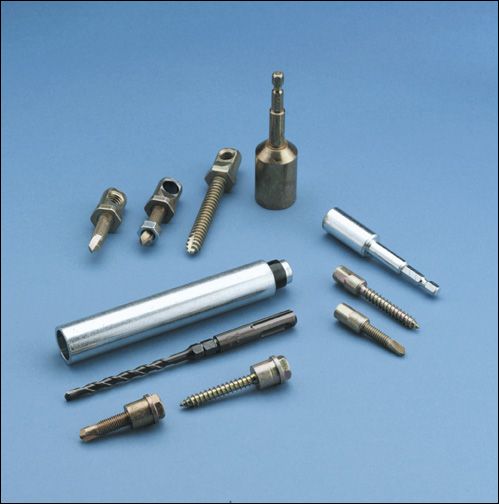

The HangerMate^Â®threaded rod anchoring system provides easy vertical or side-mounted installation of 3/8-16 or 1/4-20 threaded rod in wood, steel, and concrete. The anchors can be installed with a standard drill eliminating the need for elaborate powder-actuated tool systems. Only the concrete application requires a pre-drilled hole. The drive sleeve conveniently fits over the drill bit to minimize handling and installation time.

^{HangerMate is a registered trademark of Elco Textron.}

Features

Easy installation of 3/8-16 or 1/4-20 threaded rod
Installs and taps into steel, wood, and concrete with drill
Vertical- or side-mount applications

Applications

Ideal for steel, wood, and concrete applications where threaded rod needs to be installed.

More Information

Catalog #	Rod Size	Description	Qty. Per Box
HMZG160	1/4-20	1/4-20 HangerMate Anchor, #3 Point for Steel Applications- Vertical Mount (End-Drilled Head)	50
HMZG471	3/8-16	1/4-20 HangerMate Anchor with nut, #3 Point for Steel Applications- Vertical Mount (End-Drilled Head)*	50
HMZG550	3/8-16	5/16-24 x 1-1/8" HangerMate Anchor, #3 Point for Steel Applications- Vertical Mount (End-Drilled Head)*	50
HMZH455	3/8-16	1/4-20 1" HangerMate Anchor, #2 Point (.060-.125 steel thickness) for Steel Applications- Horizontal Mount (Cross-Drilled Head)	50
HMZH475	3/8-16	1/4-20 1" HangerMate Anchor, #3 Point (.060-.250 steel thickness) for Steel Applications- Horizontal Mount (Cross-Drilled Head)	50
HMZH476	3/8-16	1/4-20 X 1" HangerMate Anchor with nut, #3 Point (.060-.250 steel thickness) for Steel Applications- Horizontal Mount (Cross-Drilled Head)	50
HMZG315	1/4-20	5/16 x 2-1/4" HangerMate Anchor for Wood Applications- Vertical Mount (End-Drilled Head)	50
HMZG660	3/8-16	5/16 x 2-1/4" HangerMate Anchor for Wood Applications- Vertical Mount (End-Drilled Head)	50
HMZH665	3/8-16	5/16 x 2-1/4" HangerMate Anchor for Wood Applications- Horizontal Mount (Cross-Drilled Head)	50
HMZG365	1/4-20	5/16 x 2-1/4" HangerMate Anchor for Concrete Applications- Vertical Mount (End-Drilled Head)	50
HMZG730	3/8-16	5/16 x 2-1/4" HangerMate Anchor for Concrete Applications- Vertical Mount (End-Drilled Head)	50
HMZG735	3/8-16	5/16 x 2-1/4" HangerMate Anchor for Concrete Applications- Horizontal Mount (Cross-Drilled Head)	50
HMZE215	-	Vert recessed drive socket	1
HMZE220	-	Concrete recessed drive sleeve	1
HMZE240	-	Drill Bit Adapter Kit	1
HMZE340	-	ANSI 1/4" Tanged Drill Bit for Hammer Drills	1
HMZE350	-	ANSI 1/4" SDS Drill Bit for Rotary Hammer Drills	1

* Nut required for light gauge steel applications (16 GA or .060")

Due to a policy of continued product development, specifications are subject to change without notice.
